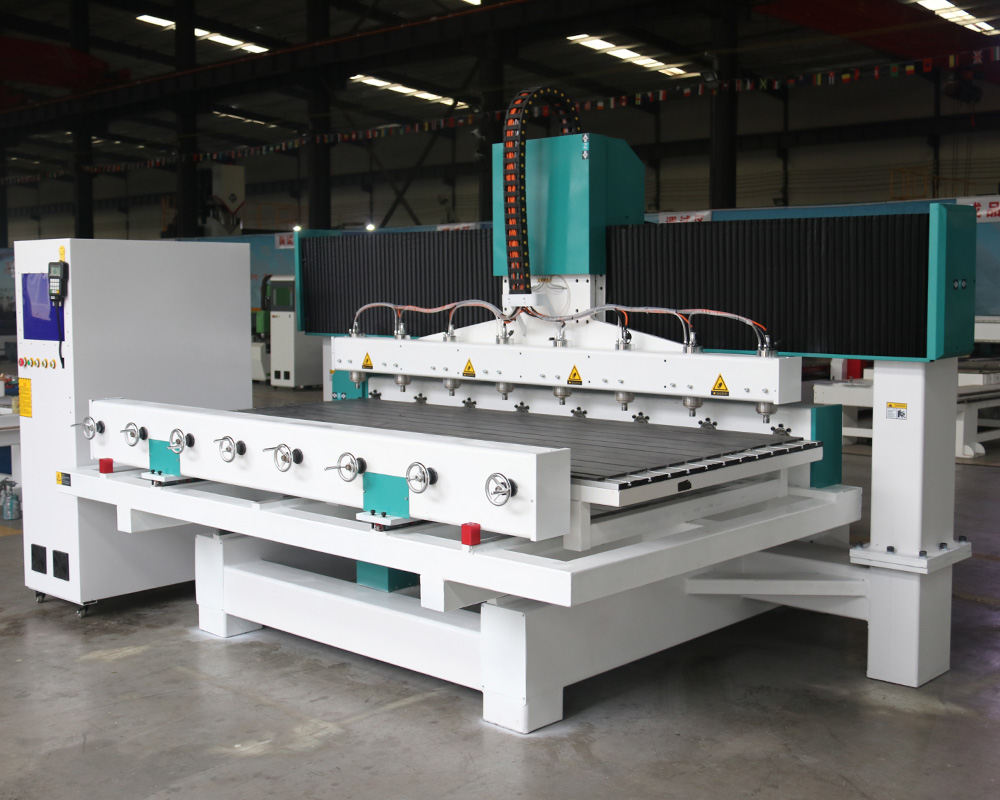

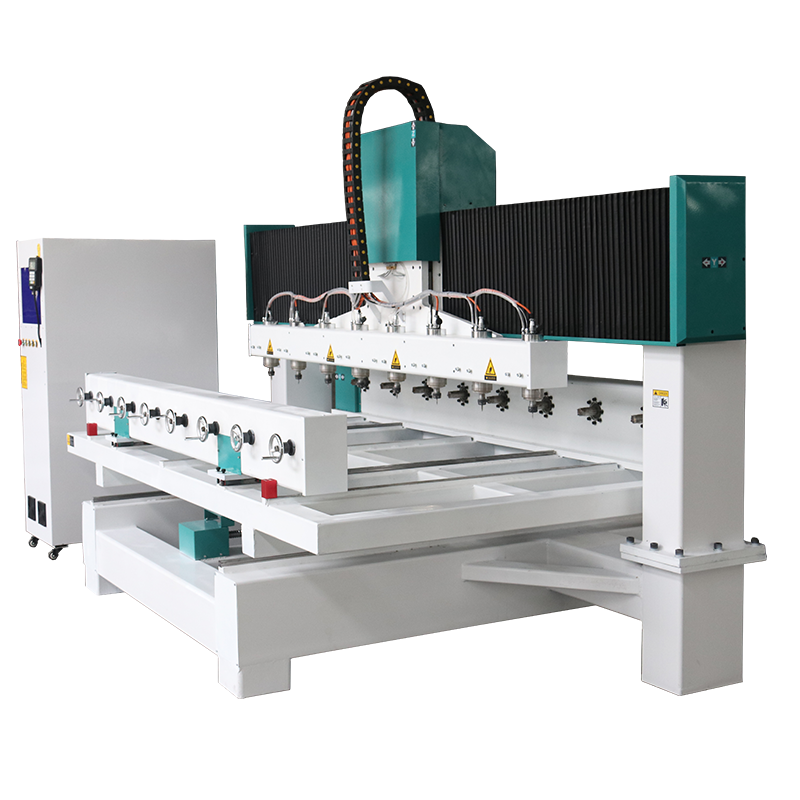

⁦3D Wood Engraving CNC Router⁩ - الصورة ⁦2⁩

راوتر نقش الخشب ثلاثي الأبعاد باستخدام الحاسب الآلي

1、8 spindles of 2.2 kw each one. Water or air cooling are optional.
2、 Each spindle is controlled by one independent switch.
3、 Heavy duty spindle clamp for aluminum working
4、 Low noise and big working power
5、Strong machine frame for stable working on hard wood and aluminum
6、The special machine support is cast iron . not-deformed and high working accuracy
7、 Rotary axis diameter 300mm and working length 1400mm
8、All rotary axis is with 4 clamps
9、High accuracy motor reducer and servo motors

التصنيف: جهاز توجيه الخشب باستخدام الحاسب الآلي الوسم: 6015 Auto Focus CNC Metal Sheet Fiber Laser Cutting Machine

الوصف

التطبيقات

Woodworking industry:

Three dimensional wave plate processing, cupboard doors, wooden doors, window processing, video game cabinets and panels, computer table and furniture auxiliary processing.
Advertising industry:
Advertising signs, logo production, acrylic, plastic cutting, production of decorative materials, forming system module, etc.
Furniture industry:
Solid wood furniture, solid wood doors, decorative materials, computer tables, panel furniture, office furniture, wooden.

منطقة العمل X، Y، Z	15003000250mm
X,Y,Z Traveling Positioning Accuracy	± 0.05 مم
X,Y,Z Repositioning Accuracy	± 0.05 مم
سطح الطاولة	T-slot Aluminum +PVC can be option
الإطار	By welded steel
X, Y Structure	Transmission by gear and rack
Z Structure	HIWIN Rail Linear Guide and TBI Ball Screw
Max. Power Consumption	(Without Spindle) 3kw
Max. Rapid Travel Rate	60000mm/min
الحد الأقصى. سرعة العمل	25000mm/min
طاقة عمود الدوران	2.2kw / 3.2kw water or air cooling spindle
سرعة عمود الدوران	0-24000 دورة في الدقيقة
Drive Motors	Leadshine / Yaskawa /Delta
جهد العمل	AC220/380V, 50/60Hz
لغة الأوامر	G Code
نظام التشغيل	Ncstudio or Mach3 or DSP
Computer Interface	USB
Flash Memory	128M(U Disk)
X,Y Resolution	<0.01mm
Software Compatibility	Type3/Ucancame/JD paint/Powermill
Electrical components	Schneider
ER Clamp Holder	ER 25
